M2M-Mini-Cell (LTE)                                              CLICK TO ORDER                                M2M-Mini-Cell (3/4G)

              ALL ACCESS M2M PORTAL

No Monthly Data or Cellular Fees!

What was once restricted to only a few Alarm Dealers through a handful of Central Stations in the U.S. and Canada is now available to VirtuAlarm Dealers anywhere in North America!

Our “Unlocked” M2M-Mini-Cell works in both the U.S. and in Canada allowing the Dealer to send alarm signals to ANY Central Station of their choice, Worldwide!

No longer is the Alarm Dealer “locked” into the Central Station that they purchase their M2M’s from.   Including the ability for VirtuAlarm to transfer any existing M2M transmitters into the VirtuAlarm platform.  Then the Alarm Dealer can have VirtuAlarm either send the alarm signals immediately back into their previous Central Station or choose any Central Station worldwide.

The highly sought after M2M-MINI-CELL communicators are designed to be easy to install and even easier to operate.  It comes with a 6 wire harness that is simple to install.  One pair of wires are for power and one pair for the Tip and Ring dial capture output of the alarm panel.  The 3rd pair of wires are used for remote key switch arming if desired.  The Dealer can also have their logo added to the remote arm/disarm App for the M2M-Mini-Cell.

With the VirtuAlarm platform and the M2M-Minit-Cell, the Dealer can turn virtually any new or existing new alarm system into a smart alarm as there is no need to replace any existing equipment when adding the M2M-Mini-cell.

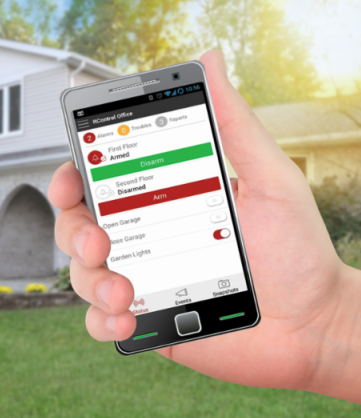

Easily download the free mobile application for Android, iPhone or Windows Phone to take advantage of the new SMART features of the alarm system.  For the most common alarm panels we now support UDL – transparent remote programming with the panel manufacturer’s software.

Technical  Information 3/4G

  • Dual Band UMTS/HSPA/ 850/1900MHz
    ARM11 processor, 2MB RAM, 7MB Flash
    Dial Capture interface supporting Ademco Contact ID
    1 digital input, 1 digital output
    Build-in World SIM chip
    SMS backup of alarm events
    Supply voltage 12VDC
    Power Consumption Nominal 15mA, Peak 200 mA
    Ultra-Compact Dimensions: 1.2”x1.8”x0.6” (30x45x15mm) – the world’s smallest communicator                                                                                                                                                                        Weight: 0.9oz (25g) without antenna

Technical  Information LTE



  • LTE 700/850/1700/1900 MHz with 3G/4G 850/1900 MHz fallback
  • ARM11 processor, 2MB RAM, 7MB Flash
  • Dial Capture interface supporting Ademco Contact ID
  • 1 digital input, 1 digital output
  • 2 Built-in World SIM chips
  • SMS backup of alarm events
  • Supply voltage +12 to +30 VDC
  • Power Consumption Nominal 15mA, Peak 200 mA
  • Ultra-Compact Dimensions: 1.6” x 1.95” x 0.82” (40.6 x 50 x 21 mm)
  • Weight: 1.1 oz (30 g) without antenna





*  Rates are subject to change.
